E3F-DS30F1 Infrared Photoelectric Switch

A passive infrared sensor (PIR sensor) is an electronic sensor that measures infrared (IR) light radiating from objects in its field of view. They are most often used in PIR-based motion detectors. PIR sensors are commonly used in security alarms and automatic lighting applications.

Photoelectric switches control the power to a connected appliance or fixture by measuring the light falling on the lens (also called the "eye"). These switches are mostly employed in outdoor locations to allow lights to turn on automatically after the sun has gone down.

This is a set of transmitter and receiver in one of the photoelectric sensors. Detection distance can be adjusted according to the requirements. The sensor has a detection distance, by small visible light interference, cheap, easy to assemble, easy to use features, can be widely used in robot obstacle avoidance, line piecework and many other automation products.

Photoelectric Switch Application:

1. Lighting
2. PIR
3. Robot
4. Stairway
5. Counting Objects

Photoelectric Switch Specification:

1. Model: E3F-DS30F1
2. Detection: Diffuse reflection

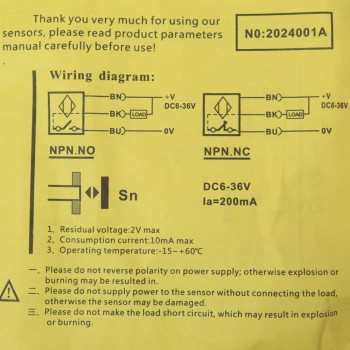

3. Wire type: 3 wires (brown, blue, black)
4. Output type: NPN N / O (normally open)
5. Detection distance: 7~30 CM adjustable
6. Detection: Diffuse reflection
7. Detectable object: any reflective object
8. Operating voltage: 6 ~ 36V DC
9. Response time: 2ms
10. Cable length: 1.2M / 3.5ft Housing
11. Material: ABS
12. Waterproof level: IP65
13. Dimension: 50*25m
