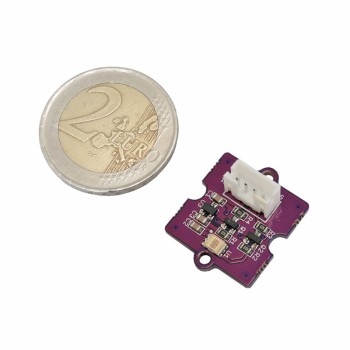

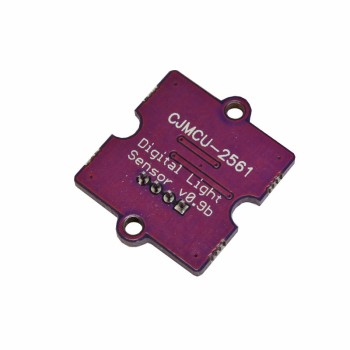

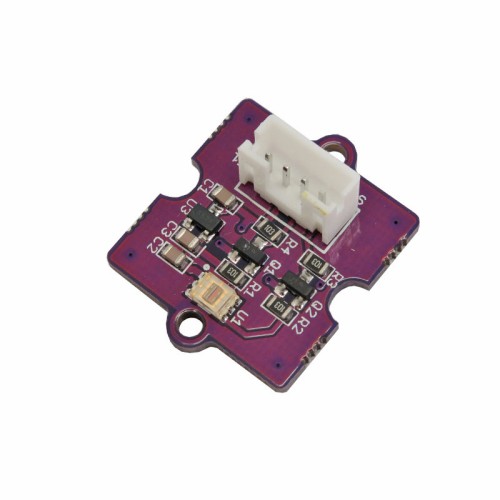

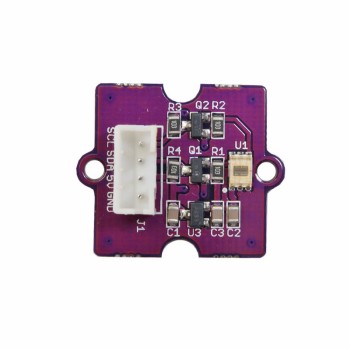

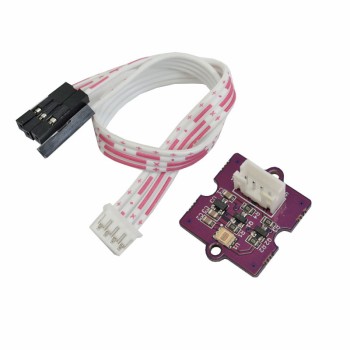

TSL2561 Light Intensity Sensor Module

The TSL2561 Light Sensor Module is a digital optical sensor that converts light intensity into a digital output signal. It communicates directly with other modules via I2C and SMBus protocols. With its high speed, high accuracy, and low power consumption, the TSL2561 Light Intensity Sensor Module is ideal for energy-saving applications and environments with varying light conditions. The TSL2561 Lux Meter Module is widely used in systems requiring automatic brightness adjustment. The CJMCU TSL2561 Light Intensity Sensor Module is especially suited for mobile devices, displays, and other light-sensitive electronics.

Applications of the TSL2561 Light Intensity Sensor Module

1. Machine vision
2. Cell phones
3. Street lighting control
4. Saving power in monitoring data
5. Lux meter systems
6. Display panels
7. Security lighting solutions

Specifications of the TSL2561 Light Intensity Sensor Module

1. Supply Voltage: 2.7V to 3.7V
2. Input Low Voltage (SCL, SDA): -0.5V to 0.8V
3. Input High Voltage (SCL, SDA): 2.1V to 3.6V
4. Digital Output Voltage Range: -0.5V to 3.8V
5. Digital Output Current: -1mA to 20mA
6. Operating Temperature: -30°C to 70°C
7. Storage Temperature: -40°C to 85°C
8. Resolution: 16-bit

Documents:

CJMCU-TSL2561 Datasheet
