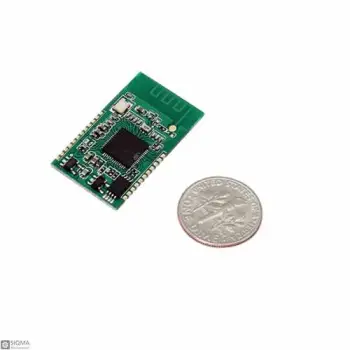

XS3868 Bluetooth Audio Receiver Module
Click image for Gallery
- Product Code:SQ1602
- Availability: 1000
- $3.10
- Ex Tax:$3.10
Tags: Audio Bluetooth, Stereo Player, Bluetooth 2.0, Stereo Wireless, Audio Receiver, XS3868
Features:
Class2 power level
Built-in lithium battery charging circuit
Strong noise eliminating circuit
The effective transmission distance of 20 meters
Very low working voltage VBAT: 3.4-4.2 v
Minimal surface-mount packaging: 14 x23mm
The following Bluetooth Bluetooth specification V2.0 + EDR
Support A2DP V1.2, AVRCP V1.4 profiles Block
The integrated EEPROM, configurable working mode and parameters
The stereo audio output can direct drive 40 mw @ 32 ? speeker without the need for a condenser
The integrated power on reset and programmable low voltage monitoring function
5 control buttons, including switch machine play the pause button, volume, volume reduction, a song, the next song
Can support without button automatic connection
2 LED is used to indicate different working condition
Package Include:
1x XS3868 Module
| Electrical Parameters | |
| Frequency | 2.4GHz |
| Voltage | DC 3.4-4.2v |
| Physical Parameters | |
| Size | 14mm x 23mm |
