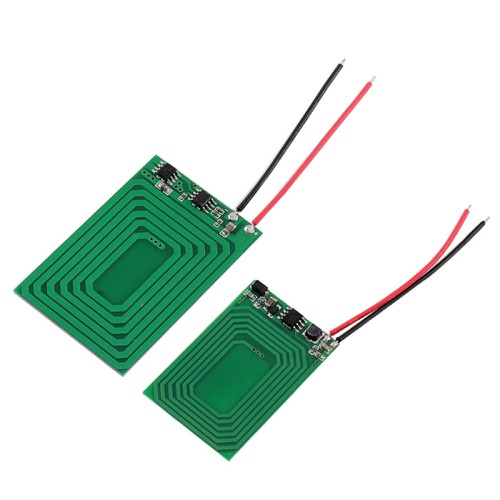

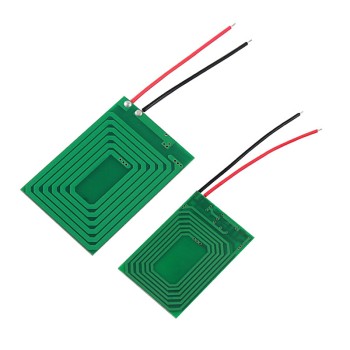

XKT412-03 5V Wireless Charger Module

Inductive charging (also known as wireless charging or cordless charging) is a type of wireless power transfer. It uses electromagnetic induction to provide electricity to portable devices. The most common application is the Qi wireless charging standard for smartphones, smartwatches, and tablets. Inductive charging is also used in vehicles, power tools, electric toothbrushes, and medical devices. The portable equipment can be placed near a charging station or inductive pad without needing to be precisely aligned or make electrical contact with a dock or plug.

This wireless charging module is the use of newly developed core ElcoteqXKT-412 Chip developed with the module, a powerful feature of this chip, you can easily achieve ultra-high power and very fine product applications. It can meet a variety of large and small product realization no longer use an external coil PCB Itself as a transceiver for wireless charging power supply. This chip is the core module and Elcoteq exclusive sales, primarily for manufacturers of various product applications, engineering, technical personnel experienced electronics enthusiasts and small quantities of the trial.

Standards refer to the different set operating systems with which devices are compatible. There are two main standards: Qi and PMA. The two standards operate very similarly, but they use different transmission frequencies and connection protocols. Because of this, devices compatible with one standard are not necessarily compatible with the other standard. However, there are devices compatible with both standards.

Wireless charging is making inroads in the healthcare, automotive and manufacturing industries because it offers the promise of increased mobility and advances that could allow tiny internet of things (IoT) devices to get power many feet away from a charger.

Wireless Charger Module Application:

1. Wireless charger

Wireless Charger Module Specification:

1. Transmitter Module Uses an Adaptive Mode Power Supply (Can Work Directly In 5V ~ 12V)
2. Transmitter Load Current: 30 ~ 55mA
3. Launch PCB Plate Size: 61 * 41 * 1mm
4. Receive PCB Plate Size: 41 * 31 * 0.3mm
5. Maximum Output Current Receiver Module: 5V/700mA ( Receiver board device can output a large change larger current )
6. Current Time Receiver Module: 5V/500mA
