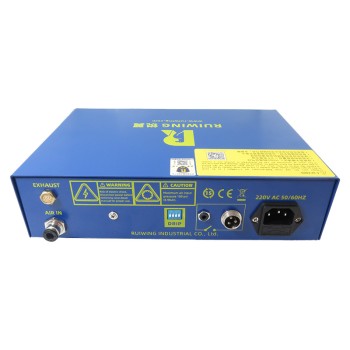

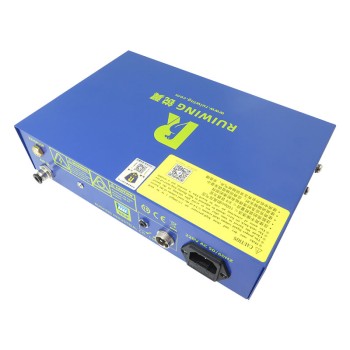

982A 220V Automatic Pneumatic Glue Dispenser Machine

The 982A dispenser for solder paste in PCB assembly is a professional tool designed for pneumatic solder paste dispensing. It can accurately and controllably inject various liquids, including solder paste, industrial adhesives, resins, and similar materials, into electronic and industrial assembly processes.

With its smart design, the 982A Solder Paste Dispenser offers adjustable injection timing and precise volume control, making it highly suitable for semi-automatic production lines and PCB assembly workshops. The device can be operated in both manual and automatic modes, providing flexibility for different applications.

Equipped with a foot pedal and a programmable timer, the Solder Paste Injector for PCB Assembly allows highly repeatable and precise dispensing. The internal timer can be set in three ranges from 0.01 to 30 seconds, and the minimum dispensing volume is 0.01 mL. A key feature of this dispenser is its suck-back function, which prevents leakage or dripping after injection, especially when handling high-viscosity liquids or sensitive materials such as solder paste or epoxy adhesives.

The Precision Solder Paste Dispenser for Surface Mount Soldering, also known as the 982A Dispenser, operates on a variable input voltage of 110–230V AC with a 24V DC internal supply. It requires connection to an air compressor, operating at an input pressure of 2.5–7 bar (35–100 psi) and an adjustable output pressure of 0.1–5.5 bar (1–78 psi), offering excellent adaptability for various applications.

This device is highly effective for applications such as securing SMD components before soldering, adhesive application on electronic parts, assembly of digital cameras, mobile phone switches, optical lens connections, and even LED lighting or miniature speakers. Its precision in applying solder paste on SMD pads prior to soldering makes the 982A dispenser for solder paste in PCB assembly an outstanding tool for surface mount soldering.

The package includes four 30 mL reservoirs and a set of metal and plastic nozzles for accurate dispensing. Compact in size, measuring 23.8 × 15.5 × 6 cm, the 982A Solder Paste Dispenser is ideal for electronics workbenches. With its precise control, multi-purpose functionality, and high build quality, the 982A Dispenser is an excellent choice for technicians, manufacturers, and enthusiasts involved in professional electronic assembly.

Note: This device requires an air compressor to operate.

Applications of the 982A Solder Paste Dispenser

1. Precise injection of solder paste and adhesives for PCB assembly
2. Securing SMD components before soldering
3. Adhesive application for electronic and digital components
4. Assembly and connection of LED components, lighting, and audio devices
5. Use in mechanical industries and chassis assembly
6. Dispensing epoxy, resins, and silicones

Specifications of the 982A 220V Automatic Pneumatic Glue Dispenser

1. Control Modes: Manual and Automatic
2. Repeatability: ±0.5%
3. Input Voltage: AC 110V/220V/230V (selectable), 50Hz
4. Internal Voltage: 24V DC
5. Minimum Dispensing Volume: 0.01 mL
6. Air Input Pressure: 2.5–7 bar (35–100 psi)
7. Air Output Pressure: 0.1–5.5 bar (1–78 psi)
8. Device Dimensions: 23.8 × 15.5 × 6 cm
9. Programmable Timer Ranges:

• 0.01–1 sec
• 0.1–10 sec
• 0.2–20 sec
• 0.3–30 sec

Features of the Pneumatic Dispenser

1. Precise droplet and injection cycle control
2. Suck-back function to prevent leakage and dripping
3. Four 30 mL reservoirs for liquids
4. Set of stainless steel and plastic nozzles
5. Suitable for various liquids, including:

• Fast-curing adhesives
• Epoxy adhesives
• Thread-locking adhesives
• Solder paste
• Silicone and other industrial liquids

Injection Modes:

• Continuous
• Momentary (manual mode)
