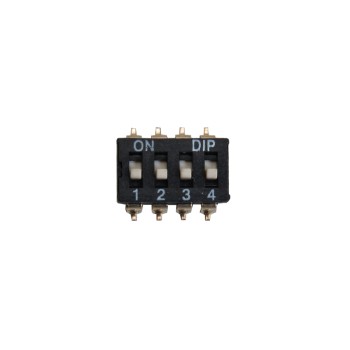

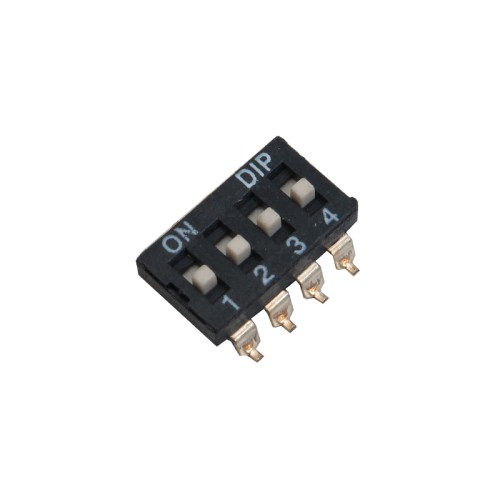

4-Pin SMD DIP Switch

The DIP switch 4-pin SMD is a compact, manual electrical switch specifically designed for surface-mount (SMD) assembly, easily mounted on printed circuit boards (PCBs). It houses a group of switches in a standard dual in-line package (DIP), allowing users to set logic states 0 and 1 for different circuit inputs. As a 4-pin DIP switch, it is widely used in electronic system design and PCB applications, often for customizing device behavior for specific scenarios.

The Small SMD DIP switch features a minimal footprint and compact design, making it ideal for projects where space is limited. This electronic SMD DIP switch provides quick and easy state changes, and is extensively used in industrial equipment, telecommunications, robotics, flashing and programming devices, remote controls for gates, and general electronic devices. Its precise performance and compact construction make the DIP switch 4-pin SMD an excellent choice for hardware configuration and adjustment tasks in various projects.

Equipped with a sliding actuator, the 4-pin DIP switch offers fast and user-friendly configuration for different circuits. These switches often serve as a reliable replacement for jumper blocks, providing easy installation, high reliability, and broad applications in digital and industrial systems.

Applications of the DIP switch 4-pin SMD

1. Setting addresses in digital systems
2. Configuring input and output states in electronic circuits
3. Initial setup on control and development boards
4. Selecting different operating modes in industrial equipment

Specifications of the 4-Pin SMD DIP Switch

1. Number of switches: 4
2. Pin pitch: 2.54 mm
3. Mounting type: Through-hole
4. Contact resistance: <50 mΩ
5. Mechanical and electrical lifespan: 10,000 cycles
6. Dielectric strength: 500 V RMS
7. Maximum current: 100mA at 50V DC
