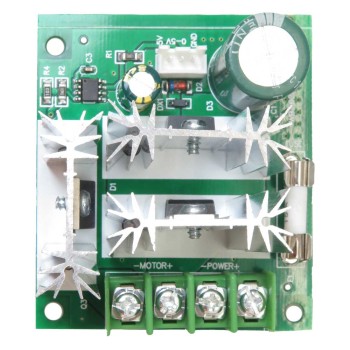

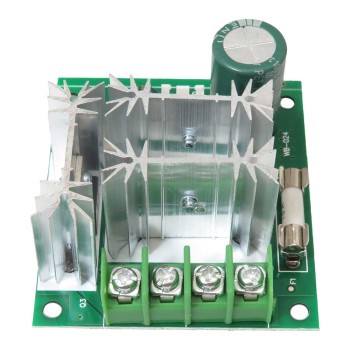

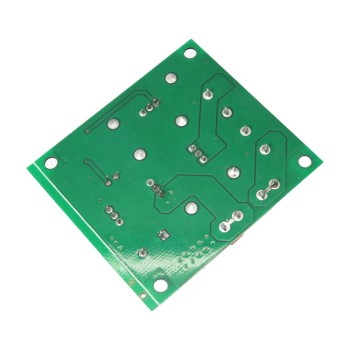

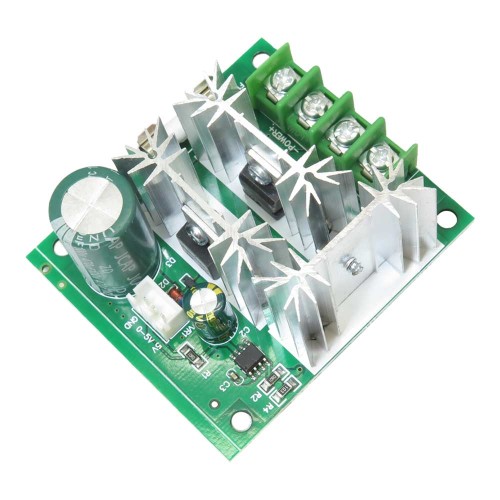

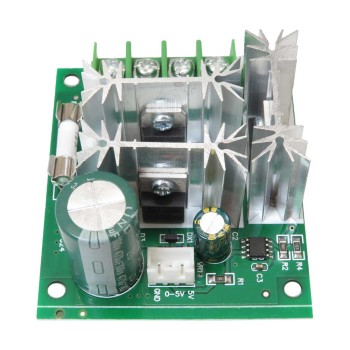

PWM DC Motor Speed Controller Module [6V-90V] [15A]

PWM DC Motor Speed Controller Module [6V-90V] [15A]
Click image for Gallery
  • Product Code:SQ3009
  • Availability: 1000
  • $3.35
  •
  • Ex Tax:$3.35
This product has a minimum quantity of 3
+
-


Tags: PWM Speed Controller, Pulse Width Modulation, DC Motor Driver, Motor Controller, Speed Regulator, Motor Speed Controller

Description:

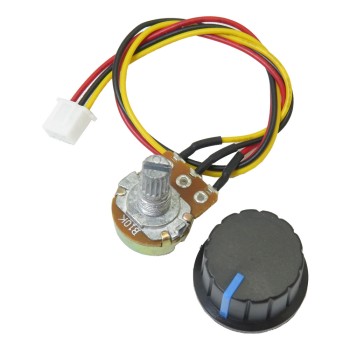

This PWM DC motor speed controller amd regulator module with the voltage range of 6V to 90V and the current rating of 15A is a large-current motor controller with a high-quality potentiometer. It has High quality materials which is durable and Eco-friendly.
For assembling a robot, you must learn about controlling a variety of motors like DC motors, Stepper motors and servos. If you want to have a complete control over DC motor, you must control its speed and rotation direction. This can be acquired by applying these two solutions, together: PWM (For controlling speed) and H-Bridge (For controlling rotation direction). The DC motor speed can be controlled by varying its input voltage. An easy way to vary its input voltage is PWM (Pulse Width Modulation). PWM is a technique where the average value of the input voltage is adjusted by applying a series of ON-OFF pulses. The average voltage is proportional to the width of the pulses named as Duty Cycle.

Features:
Operating voltage: 6V ~ 90V
Max current: 15A
Rated current: 10A
Power: 900W (Max)
PWM Frequency: 13KHz
PWM duty cycle: 0% ~100%
Size: 71mm x 61mm x 30mm

NOTE:
Only change the fuse with the same type and pay attention to voltage and current rating of the fuse.

Package Include:
1 x DC 6~90V Motor Speed Controller

Electrical Parameters
Operating Voltage 6V ~ 90V
Current 15A
Power 900W (Max)
Rated Current 10A
Board Parameters
PWM Duty Cycle 0% ~100%
PWM Frequency 13KHz
Physical Parameters
Size 71mm x 61mm x 30mm
