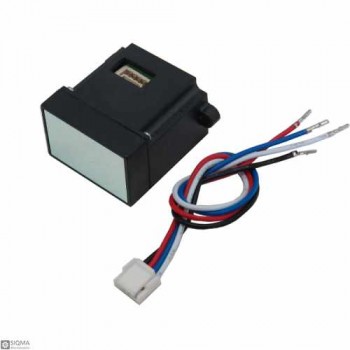

TOF Laser Distance Sensor Module [3.3V-5.5V] [5m, 10m, 20m]

TOF Laser Distance Sensor Module [3.3V-5.5V] [5m, 10m, 20m]
  • Product Code:SQ8677
  • Availability: In Stock
  • $69.85
  •
  • Ex Tax:$69.85

Available Options

+
-

0 reviews / Write a review

Tags: distance sensor, ToF Sensor, laser sensor

Description:
TOF laser ranging sensor module is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances.
TOF technology is revolutionizing the machine vision industry by providing 3D imaging using a low-cost CMOS pixel array together with an active modulated light source.
These TOF Laser Distance Sensor module have different capabilities in measuring. They can measure 5m, 10m, and 20m with an accuracy of 3cm ~ 10cm.
In TOF sensors, distance is measured for every pixel in a 2D addressable array, resulting in a depth map. A depth map is a collection of 3D points (each point also known as a voxel).

TOF Distance sensor Module Application:

  1. remote sensing
  2. robot navigation
  3. object detection
  4. people counting



TOF Distance sensor Module Features:

  1. Model: SK-Z-5, SK-Z-10, SK-Z-20 (Optional)
  2. Types of: Single point TOF laser ranging module
  3. Working Voltage: 3.3V ~ 5.5V
  4. Working Current: 74mA
  5. Power: 0.37W
  6. Indoor Range: 5m (SK-Z-5), 10m(SK-Z-10), 20m (SK-Z-20)
  7. Outdoor Range in 100Wlux Outdoor: 5m (SK-Z-5), 8m(SK-Z-10), 12m (SK-Z-20)
  8. Output Frequency: 100Hz
  9. Accuracy: 3cm ~ 10cm
  10. Resolution: 1m
  11. Blind Area: 6cm
  12. Light Source: 760nm ~ 820nm laser
  13. Interface: UART (TTL)
  14. Serial Level: 3.3V
  15. Operating Temperature: 0°C ~ 60°C
  16. Size: 20mm x 22mm x 14mm

Document:

  1. ToF sensor Arduino link
Interfaces
Interface Type UART (TTL)
Laser Features
wavelength 760nm ~ 820nm
Sensor Parameters
Accuracy 3cm ~ 10cm
Distance Range Indoor: 5m (SK-Z-5), 10m(SK-Z-10), 20m (SK-Z-20) Outdoor: 5m (SK-Z-5), 8m(SK-Z-10), 12m (SK-Z-20)
Resolution 1m
Electrical Parameters
Frequency 100Hz
Working Current 74mA
Working Voltage 3.3V ~ 5.5V
Power 0.37W
Physical Parameters
Size 20mm x 22mm x 14mm
Environmental Conditions and Safety
Operating Temprature 0°C ~ 60°C
