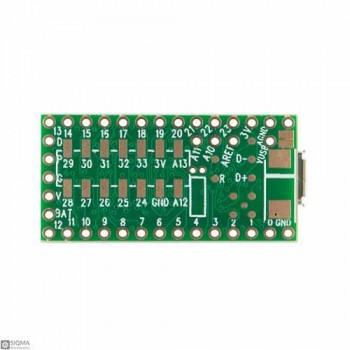

Teensy 3.1 Development Board

Teensy 3.1 Development Board
  • Product Code:SQ1610
  • Availability: In Stock
  • $39.00
  •
  • Ex Tax:$39.00
+
-

0 reviews / Write a review

Tags: Arduino, Teensy board, Teensy 3.1 development board

Description:

The Teensy 3.1 is a complete Teensy USB Development board and is as versatile as it is powerful. A custom Teensy installer and bridge application will easily allow you to write sketches for the Teensy and load them on to the Teensy. All programming is done via the USB port just like the Arduino - no special programmer is needed.
Utilizing a 32 bit ARM Cortex microprocessor running at 72 MHz, and with a footprint of only 1.4 x 0.7", Teensy packs massive processing power into a small space. Multiple channels of Direct Memory Access, 12 bit digital/analog converter, an I2S digital audio interface, 4 separate interval timers, and a delay timer, all ensure that Teensy has what your project needs. All pins have interrupt capability, and it can provide a system voltage of 3.3V to other devices at up to 100mA. Though the Teensy runs at 3.3v logic levels, all of the digital input pins are 5v tolerant, meaning you can apply a 5v input without fear of damaging the Teensy.
This product can use the Arduino program editor, fool-style programming, one-click compilation + programming + running, which is very convenient. As long as you know a little C language, you can start programming, and you can easily write your own satisfaction using the built-in API functions.

Teensy board Application:

  1.  Arduino project
  2. implementing many types of projects


Teensy 3.1 Development Board Features:

  1. Processor: MK20DX256VLH7
  2. Core: ARM Cortex-M4
  3. Rated Speed: 72MHz
  4. Flash Memory: 256KB
  5. RAM: 64KB
  6. EEPROM: 2KB
  7. Digital I/O: 34 Pins
  8. ADC: 21 Input Pin (13 bit usable, 16-bit hardware)
  9. PWM: 12 Output Pin
  10. Timer: 7 Timers for Intervals / Delays, Separate from PWM
  11. Input Voltage: 5V
  12. Logic Voltage: 3.3V
  13. Interface: CAN bus, UART, SPI, I2C, I2S
  14. Port: Micro USB
  15. Size: 35 x 17 mm


Documents:

  1. Teensy Arduino using Link
Interfaces
Interface Type CAN bus, UART, SPI, I2C, I2S
Electrical Parameters
Input Voltage 5V
Logic Voltage 3.3V
Board Parameters
ADC 21 Input Pin (13 bit usable, 16-bit hardware)
Core Number 32 bit ARM Cortex-M4 (72MHz)
CPU MK20DX256VLH7
EEPROM 2KB
FLASH 256KB
RAM 64KB
Timer 7 Timers for intervals/delays, separate from PWM
Ports Micro USB
Physical Parameters
Size 35mm x 17mm
