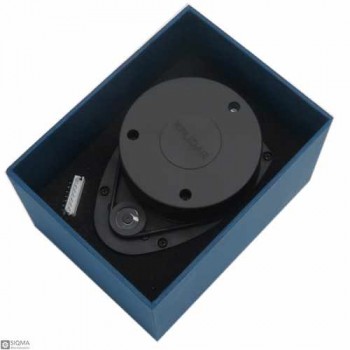

RPLIDAR A1 360 Degree Laser Range Scanner

RPLIDAR A1 360 Degree Laser Range Scanner
  • Product Code:SQ4432
  • Availability: In Stock
  • $484.40
  • Ex Tax:$484.40

Tags: Laser Scanner, Laser, RPLIDAR A1, 360 Degree Scanner, LIDAR, LIDAR Scanner

RPLIDAR A1 is a low cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC.
The system can perform a 360degree scan within a 12-meter range. The produced 2D point cloud data can be used in mapping, localization and object/environment modeling. RPLIDAR A1 is scanning frequency reached 5.5Hz when sampling 360 points each round. It can be configured up to 10Hz maximum.
The core of RPLIDAR A1 runs clockwise to perform a 360-degree omnidirectional laser range scanning for
its surrounding environment and then generate an outline map for the environment.
By means of the high-speed image processing engine designed by RoboPeak, the whole cost is reduced greatly, RPLIDAR is the ideal sensor in cost-sensitive areas like robots consumer and hardware hobbyist.
The users can use the RPLIDAR without any coding job. The sample rate of LIDAR directly decides whether the robot can map quickly and accurately.
RPLIDAR improves the internal optical design and algorithm system to make the sample rate up to 8000 times, which is the highest in the current economical LIDAR industry.
RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor environments and outdoor environments without sunlight.

Input Voltage: 5V
Scan Frequency: 10Hz (Max)
Detection Range: 0 ~ 12m
Distance Resolution: <1% of the distance
Angular Range: 0° ~ 360°
Angular Resolution: <1°
Sample Rate: 8,000sps (Max)
Laser Wave Length: 785nm
Interface: Serial
Band Rate: 115200bps

Package Include:
1 x RPLidar A1 360 Laser Scanner Development Kit

Interface Type Serial
Laser Features
wavelength 785nm
Sensor Parameters
Detection Angle 0° ~ 360°
Distance Range 0 ~ 12m
Resolution Distance Resolution: <1% of the distance, Angular Resolution: <1°
Electrical Parameters
Frequency 10Hz (Max) (Scan Frequency)
Input Voltage 5V
Sample rate 8,000sps (Max)
Baud Rate 115200bps
