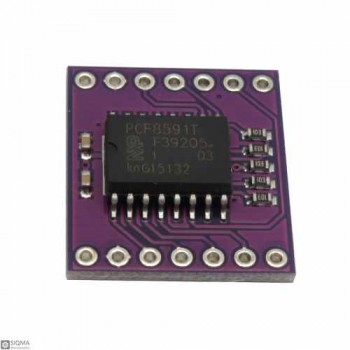

PCF8591T Analog to Digital Converter Module [8bit]

PCF8591T Analog to Digital Converter Module [8bit]
  • Brands CJMCU
  • Product Code:SQ4342
  • Availability: In Stock
  • $1.20
  • Ex Tax:$1.20
This product has a minimum quantity of 6

Tags: Analog to Digital Converter, ADC, 8 bit ADC, PCF8591T, CMOS Data

This module based on PCF8591 that is a single-chip, single-supply low-power 8-bit CMOS data acquisition device with four analog inputs, one analog output, and a serial I2C-bus interface. Three address pins A0, A1, and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I2C-bus without additional hardware. Address, control, and data to and from the device are transferred serially via the two-line bidirectional I2C-bus. The functions of the device include analog input multiplexing, on-chip track and hold function, 8-bit analog-to-digital conversion, and an 8-bit digital-to-analog conversion. The maximum conversion rate is given by the maximum speed of the I2C-bus.

Chip: PCF8591T
Resolution: 8 bit
Input Voltage: 2.5V ~ 6V
Interface: I2C
4 analog inputs configurable as single-ended or differential inputs
Auto-incremented channel selection
Analog voltage range from VSS to VDD
Pin Number: 14 Pin
Size: 17mm x 20mm

Package Include:
1 x PCF8591T ADC Module

Interface Type I2C
Electrical Parameters
Input Voltage 2.5V ~ 6V
Board Parameters
ADC 8 bit
Main Chip PCF8591T
Pin Count 14 Pin
Physical Parameters
Size 17mm x 20mm
