Panowin F1 3 Axis 3D Printer Kit

Panowin F1 3 Axis 3D Printer Kit
  • Product Code:SQ8083
  • Availability: In Stock
  • $474.00
  • Ex Tax:$474.00

Tags: Panowin F1, Laser Engraving, Self Assembly, 3 Axis Printer, 3D Printer

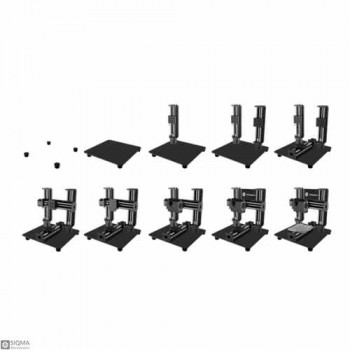

Panowin F1 3 Axis 3D Printer Kit is a 3axis 3D printer for anyone, anywhere. Its main structure is motion parts, working bed part, extruder and controller parts, which are separated as multiple high quality modules. By following a user manual and some basic tools, it can easily be montage as a 3D printer, through 10 steps. This structure is fully metallic (high quality aluminum alloy) with industrial quality and screw slider design, so it's strong and stable. This printer can be equipped  with an optional laser head  and the LCD touch screen controller, which can buy separately. It is built with high quality ball screw slide for every axis, instead of the commercial belt-rail guide motion system. The high quality stepper motors enable it to achieve the resolution of 0.1mm with layer thickness of 0.05mm.
This printer is equipped with a high quality turbo fan cooling extruder beside a high precision step motor extruder, to feed the material so smoothly and quickly. Its heating nozzle diameter can be chosen from these size 0.2mm or 0 4mm or 0.6 mm, to fit different kind of products. The heating nozzle can rapidly (from 0 to 200 centigrade within up to 2 minutes) be heated by a high efficiency heating module and a precision thermal detector. The thermal detector continuously detects and transfers thermal data to control board to provide the best working conditions for extruder.
Motion system: Single axis robot arm
Fixture: Steel mechanical holes
Resolution: Within 0.1 mm
Filament: PLA
Min layer thickness: 0.05 mm
Print volume: 120mm x 125mm x 125mm
Output format: .pcode
Data input: SD card, USB
Additional part: Heated bed platform, LCD touch screen, Laser head, enclosure.
Structure: Gantry structure
Equipment format: Modular set
Nozzle diameter: 0.4 mm
Filament diameter: 1.75 mm
Max printing speed: 120 mm/s
Slicer program: Pango
Power supply: 110-220V,50-60HZ
Operating system: Windows 7 or higher, OSX
Package volume: 410mm x 385mm x 210mm

3D Printer Properties
Material Diameter 1.75 mm
Nozzle Diameter 0.4 mm
Printing Accuracy Within 0.1 mm
Printing Size 120mm x 125mm x 125mm
Printing Speed 120 mm/s (max)
Supporting Material PLA
Physical Parameters
Size 410mm x 385mm x 210mm
Weight 9300g
