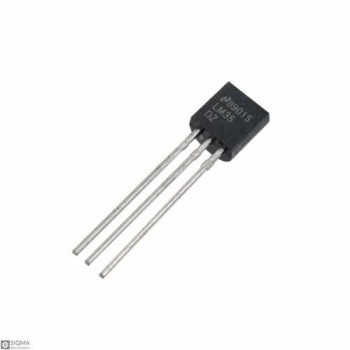

5 PCS LM35DZ Temperature Sensor

5 PCS LM35DZ Temperature Sensor
  • Product Code:SQ9704
  • Availability: In Stock
  • $1.99
  •
  • Ex Tax:$1.99
This product has a minimum quantity of 4
+
-


Tags: Analog Sensor, Temperature Sensor, LM35, Sensor, Thermometer, Thermo sensor

Description:
The LM35 series are precision integrated-circuit temperature devices with an output voltage linearly proportional to the Centigrade temperature. The LM35 device has an advantage over linear temperature sensors calibrated in Kelvin, as the user is not required to subtract a large constant voltage from the output to obtain convenient Centigrade scaling. The LM35 device does not require any external calibration or trimming to provide typical accuracies of ±¼°C at room temperature and ±¾°C over a full −55°C to 150°C temperature range.
A voltage output temperature sensor provides an analog output signal of varying voltage on a single pin. The output voltage has a factory set slope (e.g., 10 mV/°C) and correlates to the ambient temperature of the device. The device output is typically connected to a stand-alone or integrated Analog-to-Digital Converter (ADC).

Features:
Model: LM35DZ
Output Type: Analog
Calibrated Directly in ° Celsius (Centigrade)
Linear: +10-mV/°C
Accuracy: ±0.5°C (at +25°C)
Measuring  Range: 0°C ~ 100°C
Input Voltage: -0.2V ~ 35V
Output Voltage: -1V ~ 6V
Output Current: 10mA
Storage Temperature: -60°C ~ 150°C
Pin Number: 3 Pins
Package: TO-92

Applications:
Power Supplies
Battery Management
HVAC
Appliances

Package Include:
5 x LM35DZ Temperature sensor

Sensor Parameters
Accuracy ±0.5°C (at +25°C)
Measuring range 0°C ~ 100°C
Output Type Analog
Component Features
Package TO-92
Pin Number 3 Pins
Electrical Parameters
Input Voltage -0.2V ~ 35V
Output Current 10mA
Output Voltage -1V ~ 6V
Environmental Conditions and Safety
Storage temprature -60°C ~ 150°C
