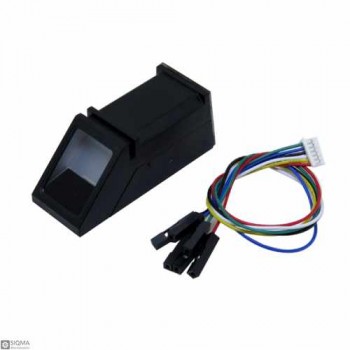

FPM10A Optical Fingerprint Module [3.6V-6V] [300 PCs]

FPM10A Optical Fingerprint Module [3.6V-6V] [300 PCs]
  • Product Code:SQ7645
  • Availability: In Stock
  • $24.20
  • Ex Tax:$24.20

Tags: Optical Fingerprint, Fingerprint module, FPM10A module, FPM10A fingerprint module


This is an optical biometric fingerprint reader/sensor , FPM10A Optical Fingerprint with a TTL UART interface for direct connections to a microcontroller UART. This module can directly interface with any 3.6V or 6V microcontrollers, but a suitable level converter/serial adapter is required for interfacing with the serial port of a PC.

The module itself does all complex tasks behind reading and identifying the fingerprints with an on-board optical sensor and fingerprint algorithm. All you need to do is send simple commands, and the fingerprint scanner can store different fingerprints.
When it comes to an Arduino project, probably you will need to download related examples and libraries, then upload the Enroll sketch to make the unit recognize your fingerprint. Follow the instructions in the serial monitor, then upload the IDfinger sketch. Now when you scan your finger, the serial monitor will show “Verified” (with the appropriate ID number) or “Finger not found” if it’s not recognized.

All you need to do is to enable a relay if a correct fingerprint is detected, and possibly write an entry line to an SD card with time and date stamp for an entry log.

FPM10A module Application:

  1. security systems
  2. intrance gates
  3. official and company gate
  4. electronic lock

FPM10A module Features:

  1. Input Voltage: 3.6V ~ 6.0V
  2. Input Current: 120mA (Max)
  3. Fingerprint Image Time: <1.0 seconds
  4. Window Size: 14mm x 18mm
  5. Matching Mode: Match mode (1:1)
  6. Search Mode: (1:N)
  7. Signature File: 256 bytes
  8. Template Files: 512 bytes
  9. Storage Capacity: 300 PCs
  10. Safety Level: Five (from low to high: 1, 2, 3, 4, 5)
  11. False Accept Rate (FAR): < 0.001% (security level 3)
  12. False Reject Rate (FRR): < 1.0% (security level 3)
  13. Search Time: < 1.0 seconds (1:500, mean)
  14. Interface: TTL
  15. Communication baud rate (UART): (9600 x N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)
  16. Operating Temperature: -20℃ ~ 50℃
  17. Storage Temperature: -40℃ ~ 85℃
  18. Operating Humidity: 85% RH (Non-condensing)
  19. Size: 56mm x 20mm x 21.5mm (L x W x H)


  1. FPM10A datasheet Link
  2. FPM10A arduino Link
Interface Type TTL
Electrical Parameters
Baudrate (9600 x N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)
Input Current 120mA (Max)
Input Voltage 3.6V ~ 6.0V
Capacity 300 PCs
Physical Parameters
Size 56mm x 20mm x 21.5mm
Environmental Conditions and Safety
Operating Temprature -20℃ ~ 50℃
Storage temprature -40℃ ~ 85℃
Operating humidity 85% RH (non-condensing)
