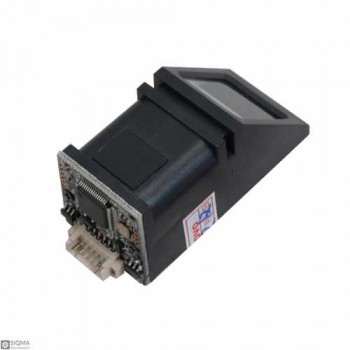

Biovo-C3 Optical Fingerprint Module [5V] [200 PCs]

Biovo-C3 Optical Fingerprint Module [5V] [200 PCs]
  • Brands Biovo
  • Product Code:SQ1293
  • Availability: In Stock
  • $20.99
  • Ex Tax:$20.99

Tags: Fingerprint Identification, Optical Fingerprint, Fingerprint Sensor, Fingerprint Module, Fingerprint recognition, Optical Sensor, Fingerprint Scanner

An electronic device that records a digital image of the fingerprint pattern is known as a fingerprint reader. The captured image is known as a live scan which is then digitally processed. The distinguishing features are extracted and a fingerprint biometric template is created.
This biometric template is stored and will be used for matching later.
Optical scanners are the common types of fingerprint scanners that use an LED light to illuminate the finger.
The sensor detects and creates the fingerprint image by determining the light and dark areas created by the fingerprint ridges.
The scanning process starts when the individual places his finger on the glass plate that is known as a touch surface.
There are four types of fingerprint scanner: the optical scanner, the capacitance scanner, the ultrasonic scanner, and the thermal scanner. The basic function of these three types of scanners is to get an image of a person's fingerprint and find a match for this print in the database. The capacitance scanner is better because the images are more exact and precise. Scanners are used for scanning.
The fingerprint module has stable performance, perfect functions, and has multiple functions such as fingerprint collection, fingerprint registration, fingerprint comparison, and fingerprint search.
This module is controlled by the serial port. You can also use the computer serial port to control it as well. MSP430, 51, AVR, PIC, STM32, ARM, FPGA, Arduino controller can operate this module.

1. Integrated image collection and chip algorithm together, all-in-one
2. Users can lead to secondary development, can be incorporated into a variety of end products, such as Access control, attendance, safe-deposit box, auto locks
3. Low power consumption, low cost, small size, excellent performance
4. Professional optical technology, precise production techniques module
5. Good image processing capacity, capable of successfully capturing images with resolution up to 500 dpi
6. Fingerprint detection function

Brand: Biovo
Model: C3
Supply Voltage: 5V
Resolution: 500dpi
Storage Capacity: 200 PCs
Signature File: 256 bytes
Template Files: 512 bytes
Fingerprint Image Entry Time: <0.45 seconds
False Accept Rate (FAR): <0.001%
False Rejection Rate (FRR): <1.0%
Interface: UART (TTL)
Window Area: 18.5mm x 14.6mm
Size: 47.65mm x 20.50mm x 21.20mm

Package Include:
1 x Biovo-C3 Fingerprint Reader Module

Interface Type UART (TTL)
Sensor Parameters
Resolution 500dpi
Electrical Parameters
Input Voltage 5V
Physical Parameters
Size 47.65mm x 20.50mm x 21.20mm
