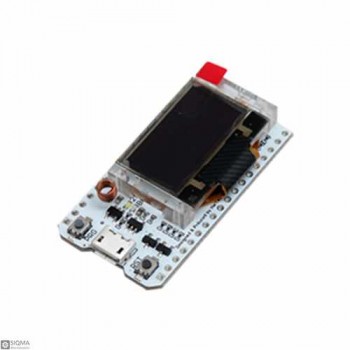

ESP32 OLED LoRa Wifi And Bluetooth Module With CP2102

ESP32 OLED LoRa Wifi And Bluetooth Module With CP2102
  • Product Code:SQ6159
  • Availability: In Stock
  • $19.00
  • Ex Tax:$19.00
This product has a minimum quantity of 10

Tags: ESP32 WIFI LORA, Wifi OLED, CP2102, Wifi Module, Bluetooth Module, SX1278

Description :
This product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa ™ remote modem, 433MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).

Main chip: esp32 and SX1278
Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps

Package Include:
1x WIFI-LoRa-32
Electrical Parameters
Frequency LoRa ( 433MHz )
Voltage DC 3.3-7V
